Technical Solution: Nickel Ferrite (NiFe2O4) for Advanced EM Absorption & Shielding

1. Material Identification

Nickel Ferrite (NiFe2O4) is a high-performance soft magnetic ferrite with an inverse spinel structure. In this configuration, Ni2+Ni2+ ions and half of the Fe3+Fe3+ ions occupy octahedral sites, while the remaining Fe3+Fe3+ ions occupy tetrahedral sites.

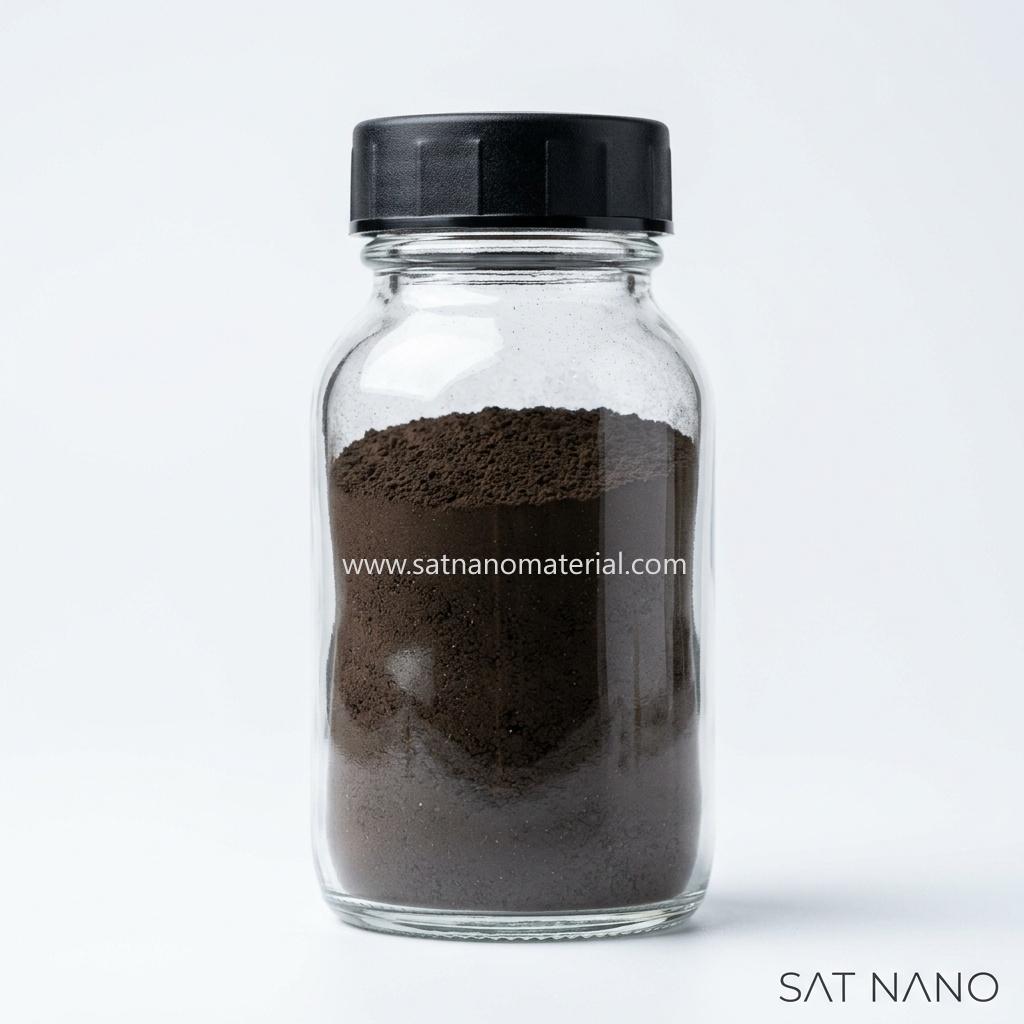

• Physical Form: Ultra-fine black or dark gray nanopowder.
• Key Characteristics:
• High Curie Temperature (≈585∘C≈585∘C): Maintains magnetic stability in high-temperature environments.
• High Electrical Resistivity: Unlike metallic powders, it minimizes eddy current losses at high frequencies.
• Chemical Stability: Highly resistant to oxidation, corrosion, and environmental degradation.

2. Functional Roles & Mechanisms

In the design of Electromagnetic (EM) functional materials, Nickel Ferrite serves two critical roles:

2.1 Magnetic Loss Mechanism

It attenuates EM energy primarily through magnetic hysteresis loss, domain wall resonance, and natural resonance. It is particularly effective in the 1 MHz to 18 GHz range, converting magnetic field energy into heat.

2.2 Impedance Matching Optimizer

A major challenge with high-conductivity fillers (like Carbon Nanotubes) is that they reflect waves at the surface. Nickel Ferrite has a relatively high magnetic permeability (μμ) and a moderate dielectric constant (εε). This balance helps the material achieve impedance matching (Zin≈Z0Zin≈Z0), allowing EM waves to enter the coating rather than reflecting off the surface.

2.3 High-Frequency Performance

Due to its high resistivity, NiFe2O4NiFe2O4 can operate at much higher frequencies than traditional iron powders without suffering from the "Snoek's Limit" bottleneck as severely.

3. Technical Parameters (Typical 2-18 GHz Range)

The following values represent typical performance metrics for NiFe2O4NiFe2O4 dispersed in a polymer matrix (at 30-40% loading):

4. Integrated Application Solution

To overcome the density of pure ferrite and its relatively low dielectric loss, we recommend a "Magneto-Dielectric Synergistic System."

4.1 Recommended Formulation Concept

• Binder: Epoxy, Polyurethane, or Silicone rubber.
• Primary Filler: NiFe2O4NiFe2O4 Nanopowder (25% - 40% wt).
• Secondary Filler: Multi-Walled Carbon Nanotubes (MWCNTs) or Graphene (1% - 3% wt) to provide the necessary electrical conductivity for dielectric loss.
• Coupling Agent: Silane (e.g., KH-550) to improve dispersion and interface bonding.

4.2 Preparation Workflow

1. Surface Modification: Treat NiFe2O4NiFe2O4 with a silane coupling agent to enhance organophilic properties.
2. High-Energy Dispersing: Use ball milling or bead milling to create a homogeneous mixture of the ferrite and carbon co-fillers in the resin.
3. Application: Spray or cast to a calculated matching thickness (typically 1.5∼2.5 mm for X-band or Ku-band targets).

5. Strategic Conclusion

Nickel Ferrite (NiFe2O4) is a "versatile" filler for modern EM protection.

• For High-Absorption: Use it as an impedance-matching "window" to let waves into the coating.
• For EMI Shielding: Use it in composites to block the magnetic component of radiation, which carbon-only shields often fail to do.
• For Extreme Conditions: Choose NiFe2O4 when the application requires high-temperature stability (up to 300°C+) where other magnetic materials might fail.
