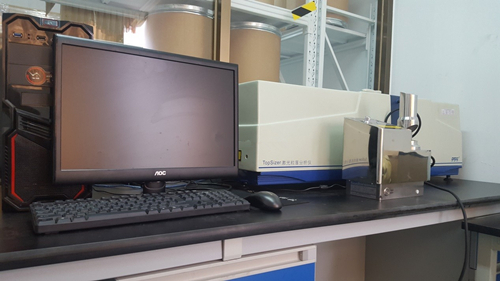

Instrument Description: It can measure both the sample to be dispersed in the liquid and the powder material which cannot be dispersed in the liquid and must be dispersed in the gas.

working principle:
Using the scattering phenomenon of particles by light, the particle size distribution of the measured particles is estimated based on the distribution of scattered light energy. Through the integration and optimization of optical, mechanical, electronic, computer and other systems, Omega has made the Omega laser particle size analyzer have the advantages of good repeatability, wide dynamic measurement range and simple and convenient operation.

Technical indicators:
1. Measurement range: 0.02-2000μm (wet method), 0.1-2000μm (dry method)
2. Measurement principle: full-scale Mie scattering theory
3. Repeatability error: ≤0.5% (standard D50 deviation)
4. Accuracy error: ≤ ± 1% (standard D50 deviation)
5. Measurement speed: normal measurement is completed within 10 seconds
6 injection method:
Wet method: using high-power precision centrifugal pump, the stirring speed can reach 4000 rev / min, built-in ultrasound, stepless adjustable;
Dry method: Dispersion particle size range: 0.1 ~ 2000μm, dispersion working pressure: 0.05 ~ 0.6MPa stepless adjustable, injection speed: 0 ~ 100% stepless adjustable.
7. Optical path system: Dual light source design, using imported HeNe laser with a wavelength of 0.6328 microns; and a semiconductor blue light source with a wavelength of 0.466 microns, greatly improving the resolution of nano-sized particles and a small number of large particles. The laser power is always stable and the power fluctuation is less than 0.5%;
The instrument is designed to meet international laser safety regulations and has automatic laser beam protection;
The folding optical path is adopted, and the high-precision all-aluminum optical platform is stable and reliable for a long time;
Single lens design with lens post-Fourier transform structure. The optical path system is completely enclosed, effectively solving the dust pollution problem;
The detector is automatically centered.
8. Detector: The number of detection channels is 98. The three-dimensional detection system consists of forward, lateral, large angle and backward photodetectors. The maximum detection angle is 140 degrees and the minimum detection angle is 0.016 degrees.
9. Software function: modular software design, visualization of instrument status, user-friendly operation interface; SOP standard operation flow function; various data analysis models to meet the test needs of different characteristic samples; clear and clear process interface with navigation function With artificial intelligence, the instrument has self-checking function and automatically recognizes the injection system; it can automatically measure the electric background before each measurement, effectively eliminate the influence of electrical noise on the test results; export the measurement data in various ways to facilitate data exchange; The open sample characteristic parameter database has the refractive index and absorption rate parameters of common samples; the volume distribution, surface area distribution, length distribution and quantity distribution can be converted to each other.
10. Appearance size (L × W × H)
Main machine: 1115×254×355mm
Loop injector: 265 × 325 × 405mm (SCF-108), 210 × 260 × 345mm (SCF-105B)
Dry Sampler: 305 × 245 × 295mm (DPF-110)
