High-Tech catalyst used copper Cu nanowire CuNWs powder price

Application of Copper Cu Nanowire:

1. Conductive Copper Cu Nanowire used to make the film, can greatly reduce the potential for mobile phones, e-readers and other display manufacturing costs, and can help scientists build foldable electronic products and improve the performance of solar cells.

2. Conductive cunws has excellent electrical properties, it can be used to produce nano-circuit devices.

3. The researchers said they developed the copper nanowires in addition to exceed the performance of carbon nanotubes, the price is also lower than the silver nanowire technology, the use of an array of copper nanowires resistance produced, may be included in the printing process at room temperature soft printed on a transparent plastic substrate layer, as the display pixels, solar core or processor.

4. Cu due to the low resistance, electromigration resistance is good, low cost, etc. have become the most commonly used conventional electronic circuit conductors, and therefore suitable for research and development in microelectronics and semiconductor element metal Cu nanowires have great prospect .

5. Conductive Copper Cu Nanowire as a new catalyst has high reactivity, selectivity, etc., but because of the high surface nanowires could lead to its easy reunion eventually lose catalytic activity, and so are generally choose a suitable ligand for Nano copper modified to improve its dispersibility, agglomeration avoid deactivation of catalytic activity.

6. nanometer copper wire array has a very low electric field and high stability open, in the cold field emission source also has good prospects.

7. Because a large proportion of the nano copper surface atoms, with strong surface activity, so the need for copper nanowires different surface modification treatment, resolve and poor dispersion stability and other issues, is expected to be good photocatalytic applications.

Specification of Copper Cu Nanowire:

Diameter:50-200nm

Length:1-10um

Purity:99%

Note: We can supply different size products of Copper Cu Nanowire according to client's requirements.

 Copper nanowires in metal nanowires can meet the material requirements of future optoelectronic devices due to their good electrical, mechanical and chemical properties. At the same time, the low price and abundant storage of copper nanowires make the research on copper nanowires equally important, so it is regarded as one of the most promising flexible transparent electrode materials. In addition, due to the large aspect ratio effect of copper nanowires, it also has outstanding advantages in the application of conductive adhesives and thermal conductive adhesives. Transparent conductive materials that are expected to replace ITO are doped with ZnO, carbon nanotubes, graphene, metal gates, and metal nanowires.

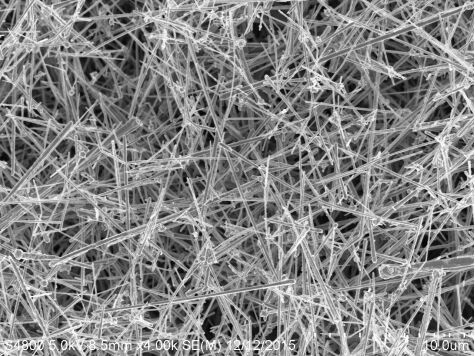

SEM of Copper Cu Nanowire:

Storage conditions:
Copper  Nanowires should be sealed and stored in a dry and cool environment. It should not be exposed to the air for a long time, to prevent agglomeration due to moisture, affecting the dispersion performance and use effect, and should avoid heavy pressure, do not contact with oxidant, and transport according to ordinary goods.
